Description

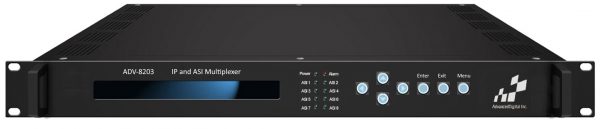

ADV-8203 is a high density advanced DVB transport stream multiplexer/re-multiplexer.
It has 8 ASI input ports, 4 ASI output ports and 2 GbE ports.
It can receive up to 512 IP streams (MPTS/SPTS) via 2 GbE ports and up to 8 ASI streams via 8 ASI ports.
ADV-8203 has 2 independent multiplexing channels.
It can output 2 independent ASI multiplexed streams via 4 ASI ports (2 main, 2 back-up).
It can output up 2 independent multiplexed IP streams via 2 GbE ports.
ADV-8203 supports PSI/SI (PAT, PMT) regeneration or pass-through, PID re-mapping, service filtering and PCR adjusting. It can insert EPG (Electronic Program Guide), and data casting information into each output stream.
Features:
- Fully compliant with ISO13818 and EN300 468 standard
- Up to 8 ASI inputs
- Up to 512 IP inputs over UDP via DATA1 and DATA2 GbE ports
- 2 independent built-in multiplexers
- 2 independent ASI multiplexed outputs
- 2 independent IP (MPTS) outputs over UDP, RTP /RTSP
- Unicast/Multicast IP input/output
- Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI re-generation
- Web-based NMS management
| Input / Output | 8 ASI input ports; 4 ASI output ports: BNC 75Ω
2 bi-direction IP ports (RJ45); 100/1000Mbps 512 IP inputs via DATA1 and DATA2 ports, MPTS/SPTS, UDP, unicast/multicast. 2 IP (MPTS) outputs, UDP/RTP/RTSP, unicast/multicast 2 ASI (MPTS) outputs |
||
| Packet format | 204/188 self-adaption | ||
| Re-multiplex | Max PIDs | 180 output per channel | |
| Functions | PID re-mapping | ||
| PCR accurate adjusting | |||
| Automatic generation of PSI/SI | |||
| PID transparent | Any PID transparent and mapping | ||
| System | Web management:10/100M NMS port | ||
| Ethernet software upgrade | |||
| General | Dimensions | 482mm×300mm×44mm (WxLxH) | |
| Weight | 3.5kg | ||
| Temperature | 0~45℃(operation), -20~80℃(storage) | ||
| Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz | ||
| Consumption | ≤30W | ||
