Description
Features:
- Direct conversion from HDMI to SMPTE 259M, 292M and 425 SDI. Accepts DVI-D input sources with conversion to coax
SDI. - Powers directly from host equipment USB or standard corded power adapter. USB power and corded adapter can be
simultaneously used to provide redundant power sourcing. - Full group 1/2 embedding from 8-channel HDMI audio.
- 5.1-channel embedding from HDMI audio. Stereo analog audio embedding from stereo analog audio input pair.
- 2x SDI DA output
- Compact size and low weight design easily affixes directly to camera or host device chassis.
- Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.

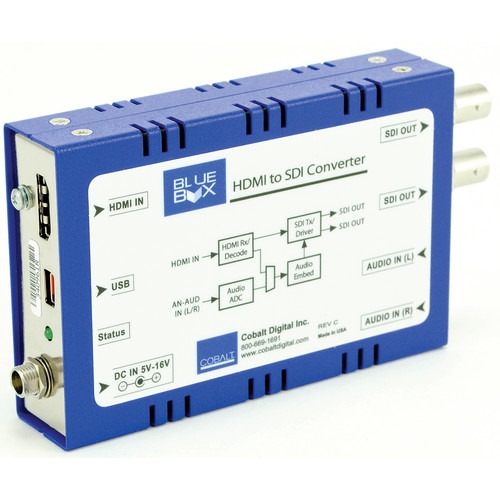

The BBG-H-TO-S HDMI-to-SDI converter unit is a part of the Cobalt Digital BlueBox™ group of compact,
rugged, and portable converter boxes. The BBG-H-TO-S can power directly via USB to get its power from
video monitors or other equipment. It provides true 3G, HD and SD conversions from HDMI to SMPTE 424M, 292M, or 259M.
The HDMI input can also receive and convert DVI-D sources (limited to SMPTE HD formats).
Embedded audio on the 2x SDI output can be sourced from the HDMI input (channels 1-8) or from a line-level analog audio
pair input. Along with the analog audio embedding offered by BBG-H-TO-S, this allows an SDI output with embedded audio
using DVI-D video sources.
Ordering Info:
BBG-H-TO-S – HDMI to 3G/HD/SD-SDI converter with Audio Embedder
Note: includes PS4 – Universal Power Supply, UL/CSA. Input: 100-240V, 60/50 Hz.
Output: 5 VDC @ 12 Watts, and Mini-USB Cable for Aux Power.
Mounting option:
BBG-MB – Mounting bracket
The BBG-MB Mounting Bracket provides rigid, secure mounting of BBG-H-TO-S unit. Heavy-gauge steel
construction with a reinforced mounting flange and several mounting holes provides clean, physically secure mounting for
even the most demanding mobile applications.
Specifications
Standards Supported
- SMPTE 259M, 292M, 424M
Inputs
- HDMI (HDMI 1.4a compliant). DVI-D compliant input (limited to SMPTE HD formats).
- (2) analog audio (unbalanced consumer RCA)
- DC power (via USB or adapter)
Outputs
- (2) SDI (75Ω BNC)
Latency Delay
- SD: <30 us
- HD: <17 us
- 3G <8 us
Audio Conversion Format
- 48 kHz sampling, 24-bit
- 8-Ch HDMI to SDI groups 1 and 2
Power Source
- Power-sourced directly from host equipment USB port. Converter can also be powered using corded AC adapter
(included)
Power
- 5-16 VDC, 2.4 W
DC Power Connectors
- USB Mini and coaxial locking connector (for use with supplied Cobalt power adapter)
Dimensions (WxHxD)
- 5.5” x 3” x 1” (including connector projections)
- (139 x 77 x 26 mm)
Operating Temperature Range
- -4°F to 158°F(-20°C to 70°C)
